Nanjing ChiShun Tech Dev Co., Ltd
Location:Products > Planetary Ball Mill > Planetary Ball Mill
1
1

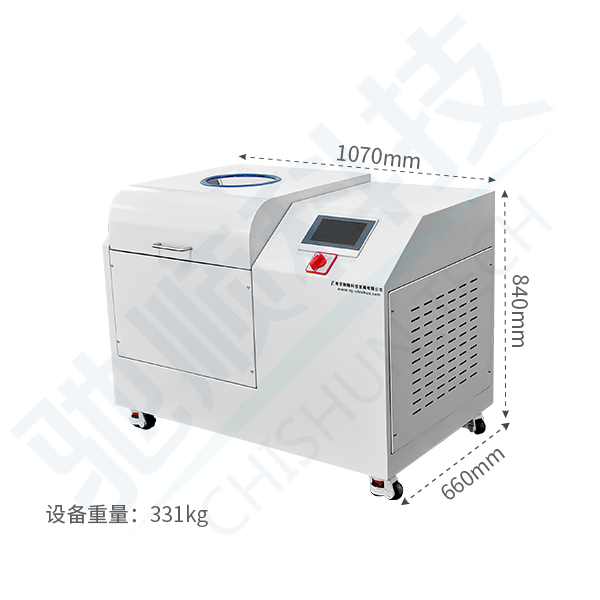

Name: QM-2SP20 Planetary Ball Mill
Model: QM-2SP20
Introduction: QM-2SP20 Planetary Ball Mill is an essential dev ice for mixing, fine grinding, sample preparation, nano-materials dispersion, new product development and small batch production of high-tech materials.
4*5000ml280rpm
  • Parameter
  • Video
  • Test case
  • Clients

QM-2SP20 Planetary Ball Mill is an essential dev ice for mixing, fine grinding, sample preparation, nano-materials dispersion, new product development and small batch production of high-tech materials. With small size, full-feature, high efficiency and low noise, this product is an ideal instrument for scientific research institutions, higher institutes and corporate research laboratories to obtain the micro-particle samples (four samples can be obtained in one experiment). If equipped with vacuum ball milling cans, it can grind the samples under vacuum situation. QM series planetary ball mills are widely used in geology, mining, metallurgy, electronics, building materials, ceramics, chemical industry, light industry, medicine, beauty, environmental protection and other departments.


Working Principle

A turntable is equipped with four milling cans. When the turntable rotates, the milling cans revolve both around the wheel axis and on their own axis, like planetary movement. Balls and materials in the cans collide and rub against each other during the high-speed movement so as to achieve the purpose of crushing, grinding, mixing and dispersing samples. This instrument can grind and mix samples of different sizes or materials during dry and wet conditions. The smallest particle discharged is 0.1um (namely1×10mm-4).

Specifications

Applications

Electronic materials, soil, aerospace materials, batteries, ceramics, minerals, metallurgy, etc.

Applicable samples

Soft, hard, brittle, fibrous, dry or wet

Max. feed volume

2/3 of the of the grinding jar

Vacuum grinding

optional

Feed size

soil≤10mm other≤3mm

Final fineness

0.1μm

Alternate timing

1-9999min

Rotation

280rpm

Grinding jar

4000ml、5000ml

Vacuum jar

4000ml

Certificate

UL、CE

Power

380V  5.5kw  50~60Hz

Packaging Details

117*80*103cm 480KG

Data storage

20 sets processes

Data monitoring

Real time monitoring of operational status, supporting fault alarms

Programmable operation

6 sets operation steps supporting edit/delete

Control mode

7" HMItouch screen, Multiple operation modes (forward and reverse alternating operation, interval operation, timed operation)

Jar materials

Stainless steel, vacuum, agate, zirconia, alumina, PTFE, nylon, tungsten carbide,etc.

Competitive Advantage

1、Factory direct delivery

2、Quality assurance

3、Best price

4、Compact in size

5、Complete specifications

6、Service Assurance

Disclaimer
The content on this website (including product description, images, parameters, etc.) is for reference only and does not constitute a legal offer or commitment. We will keep updating and please be noted that some may not match the actual situation due to the delay.
